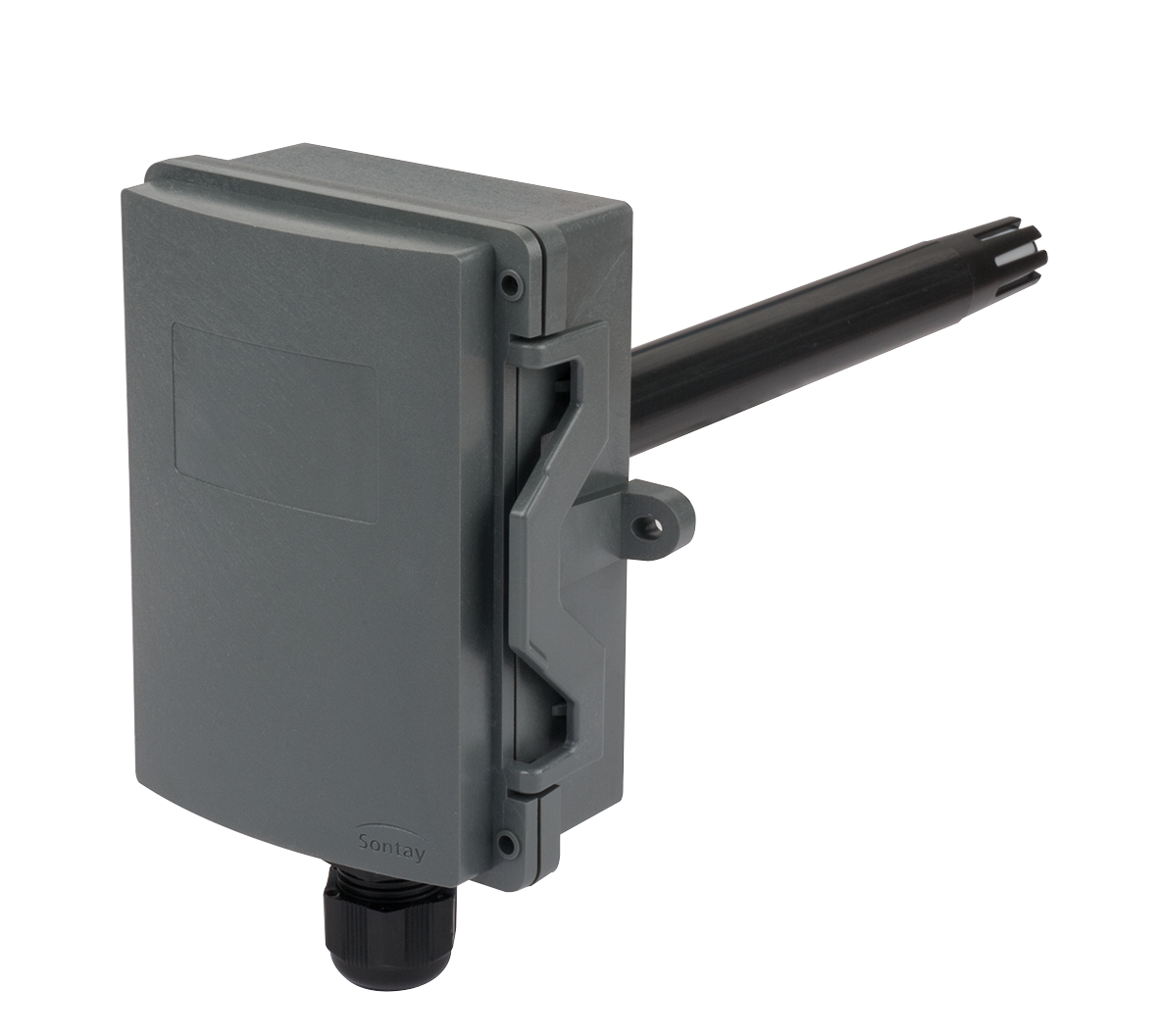

GS-CO2-D - Carbon Dioxide, Temperature and RH Sensors

GS-CO2-D – Carbon Dioxide, Temperature and RH Sensors

Using a NDIR sensor for measuring CO2 concentrations and utilizing ABC (Automatic Baseline Correction) algorithm, they offer excellent long term stability & accuracy. Available with active temperature and RH outputs, as well as other passive outputs and user interfaces. A unique feature of this sensor automatically detects what the controller input is set to, 4-20mA or 0-10Vdc. This removes the requirement for output jumpers that can be inadvertently set incorrectly.

datasheet and downloads

Add to quote

  • GS-CO2-D-F
    Duct Mounted CO2 and T Sensor 2000ppm DT Ni1000A
    Certificates
  • GS-CO2-D
    Duct Mounted CO2 and T Sensor 2000ppm
    Certificates
  • GS-CO2-D-A
    Duct Mounted CO2 and T Sensor 2000ppm DT 10K3A1
    Certificates
  • GS-CO2-D-B
    Duct Mounted CO2 and T Sensor 2000ppm DT 10K4A1
    Certificates
  • GS-CO2-D-C
    Duct Mounted CO2 and T Sensor 2000ppm DT 20K6A1
    Certificates
  • GS-CO2-D-D
    Duct Mounted CO2 and T Sensor 2000ppm DT PT100A
    Certificates
  • GS-CO2-D-E
    Duct Mounted CO2 and T Sensor 2000ppm DT PT1000A
    Certificates
  • GS-CO2-D-G
    Duct Mounted CO2 and T Sensor 2000ppm DT LAN1
    Certificates
  • GS-CO2-D-H
    Duct Mounted CO2 and T Sensor 2000ppm DT SAT
    Certificates
  • GS-CO2-D-HR
    Duct Mounted CO2 and T Sensor 5000ppm
    Certificates
  • GS-CO2-D-LCD
    Duct Mounted CO2 and T Sensor 2000ppm C/W LCD
    Certificates
  • GS-CO2-D-Z
    Duct Mounted CO2 and T Sensor 2000ppm DT 10K NTC
    Certificates
  • GS-CO2-RHT-D
    Duct Mounted CO2, T and RH Sensor 2000ppm
    Certificates
  • GS-CO2-RHT-D-A
    Duct Mounted CO2, T and RH Sensor 2000ppm 10K3A1
    Certificates
  • GS-CO2-RHT-D-F
    Duct Mounted CO2, T and RH Sensor 2000ppm Ni1000a
    Certificates
  • GS-CO2-D-A-HR
    Duct Mounted CO2 and T Sensor 10K3A1 5000ppm
    Certificates

Downloads

View this product on Sontay
